Area 419 Zero M-Series Sizing Dies 6.5x47 with Zero Shell Holder

This is a 1-1/4″ die and requires a Hybrid or 1-1/4″ Turret on your ZERO (or other press). It CANNOT be used with a 7/8″ Turret or other 7/8″ press.

IMPORTANT NOTE – THESE DIES ARE NOT COMPATIBLE WITH STANDARD SHELLHOLDERS AND REQUIRE A LARGER DIAMETER SHELLHOLDER RIM. IF YOU DO NOT HAVE A ZERO M-SERIES SHELLHOLDER YOU CANNOT USE THIS DIE.

The ZERO M-Series Sizing die is the culmination of years of testing research trial error frustration and finally discoveries.

As Reloaders AREA 419 knew they needed a die to do certain things but as the makers of the ZERO Reloading Press they also learned a huge amount about what other dies did well or did poorly and what their customers were struggling with on a daily basis.

With the ZERO M-Series Sizing Die AREA 419 produced a sizing die that is capable of producing the finest match-grade ammunition as well as being user-friendly to new and learning reloaders.

Sizing brass doesn’t have to be complicated. It doesn’t have to require years of trial and error. It just needs equipment made with the end-user in mind designed with the understanding that a die is part of an ecosystem of parts. A press a die the brass the rifle - they all have to work together and be designed with one another in mind. This is that. Introducing the ZERO M-Series Sizing Die.

KEY FEATURES

• Micrometer Adjustable Headspace/Shoulder Bump
• Precision Ground Expander Mandrels (all dies ship with a .002 neck tension mandrel or add more increments with the AREA 419 Mandrel Kit
• Full-Length Neck to Extractor Sizing
• Spring Ejection for Spent Primers
• Replaceable Steel Decap Pins
• Reamer Cut to Exacting Dimensions for a TRUE Size (no more sticky bolt after the second firing)
• Hydraulic Shoulder Pressure Relief
• 100% Made in AMERICA

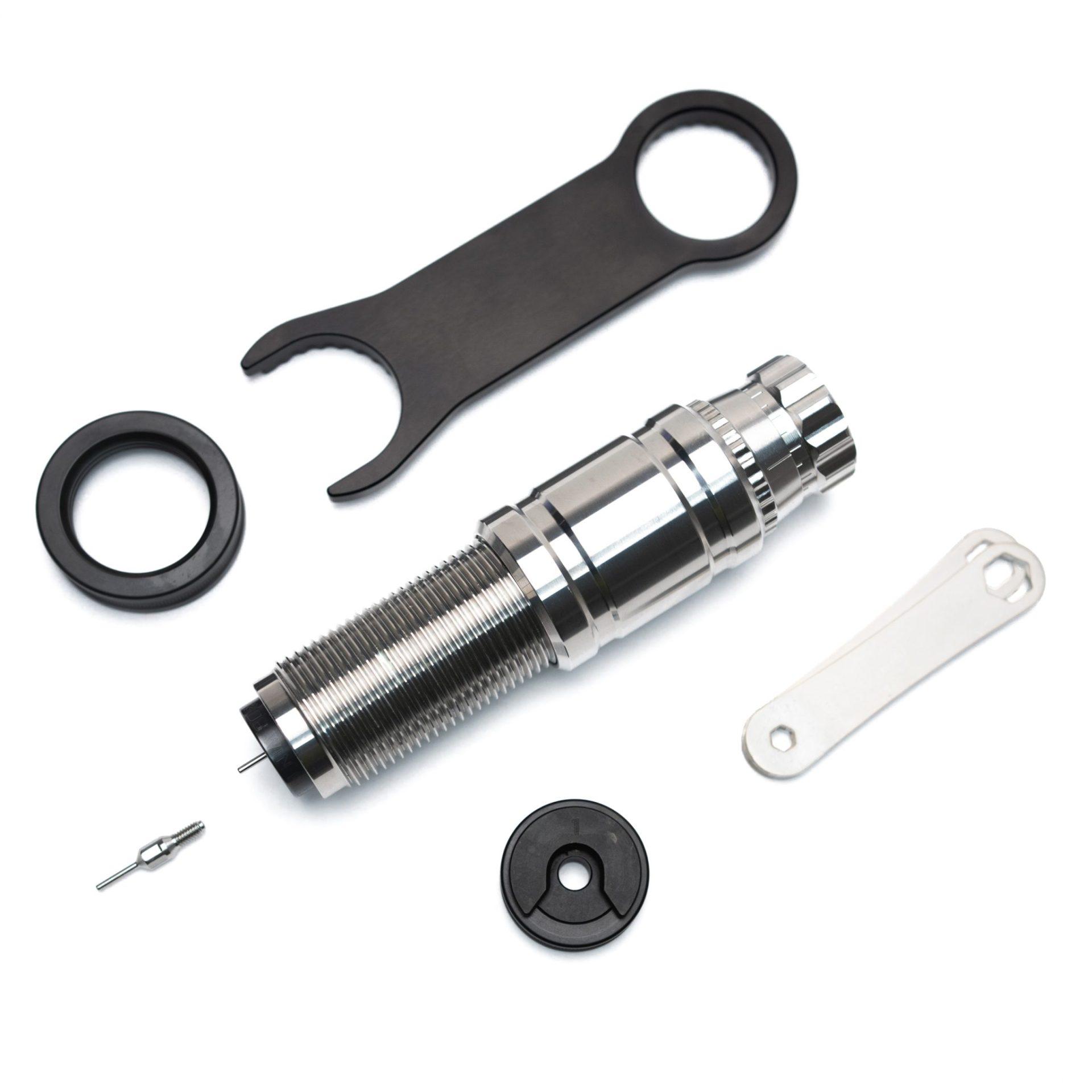

All dies ship with an Area 419 ZERO Die Ring a spare decapping pin and necessary install/removal tools.

MPN: 419-ZeroDie-M6547SH
UPC: 810080181984
